Load Capacity 220 Kg Heavy Duty Drawer Runners With Lock 76MM, 1 Pair

Load Capacity 220 Kg Heavy Duty Drawer Runners With Lock 76MM, 1 Pair

£42.84 GBP
£78.80 GBP £42.84 GBP
Sale Sold out
Length

76 Heavy Duty Drawer Runners With Lock

Product Description

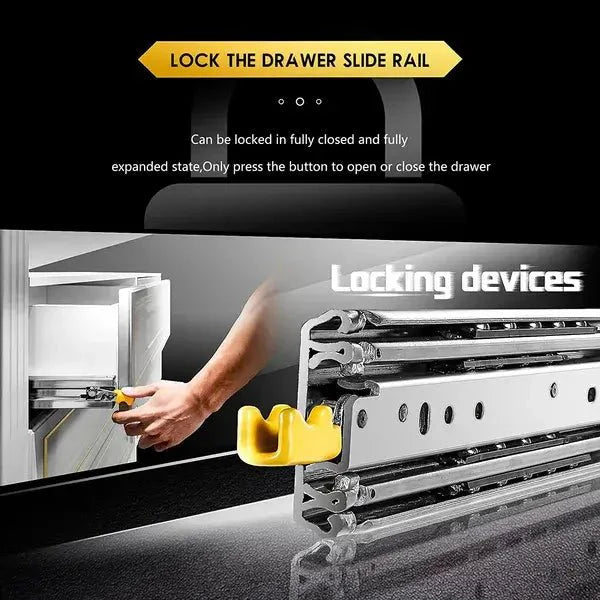

  • 【Lock Drawer Slides & Non-removable 】Press the yellow handles on both sides at the same time to lock and unlock the drawers, they can be locked when fully closed and fully opened to prevent sliding. Locking slides can be used in shelves, cabinets, industrial drawers, RVs, trucks, Campervan，vending machines, etc.

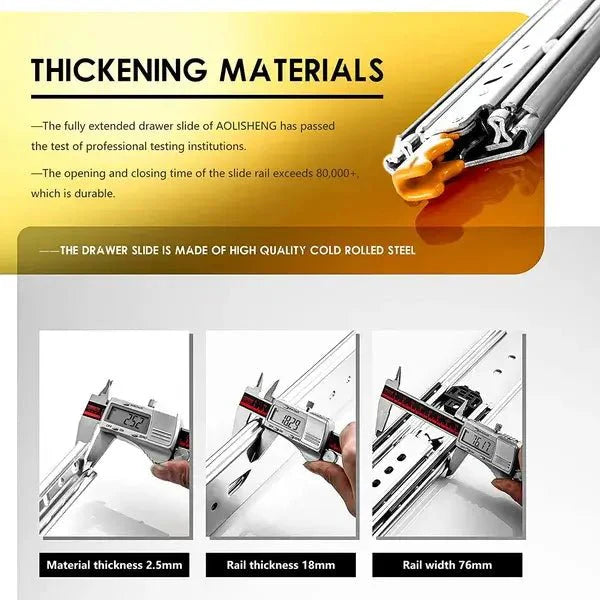

  • 【Max Load Capacity 500lb】 AOLISHENG heavy duty drawer slides are made of 2.5mm thick Q235 thick steel plate, high-strength, high-density high-quality cold-rolled steel. It can support heavy load storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and impact resistance. The number of opening and closing times has reached more than 200,000 times.

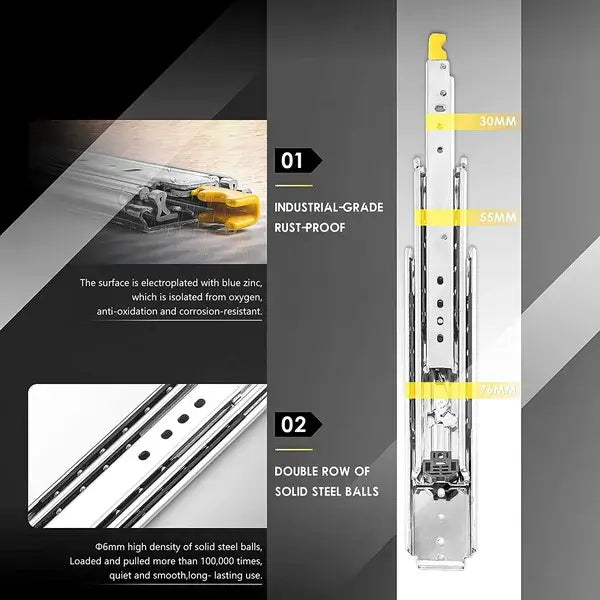

  • 【Full Extension Slide Rail, Double Anti-rust】The drawer can be fully pulled out for convenient storage of items. The surface of the slide rail is treated with galvanized blue sealing process, which isolates the rail from direct contact with air and water, and increases anti-oxidation and anti-corrosion.
  • 【Notes on Slide Rails】 1. In order to ensure the safety of users, the heavy-duty slide rails cannot be disassembled. 2. The locking mechanism can only take effect when the drawer is fully closed or fully opened. 3. Due to different usage scenarios, this product does not contain screws. You can buy M6 screws yourself. 4. The slide rail starts from 18 inches, and the weight is reduced by 10lb for every two inches of increase.

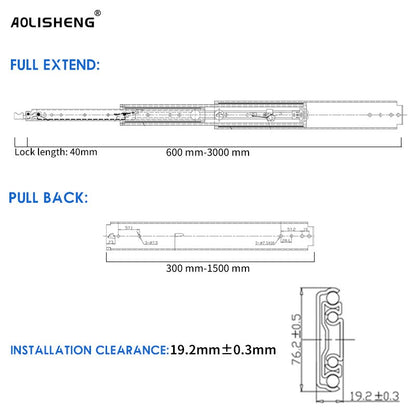

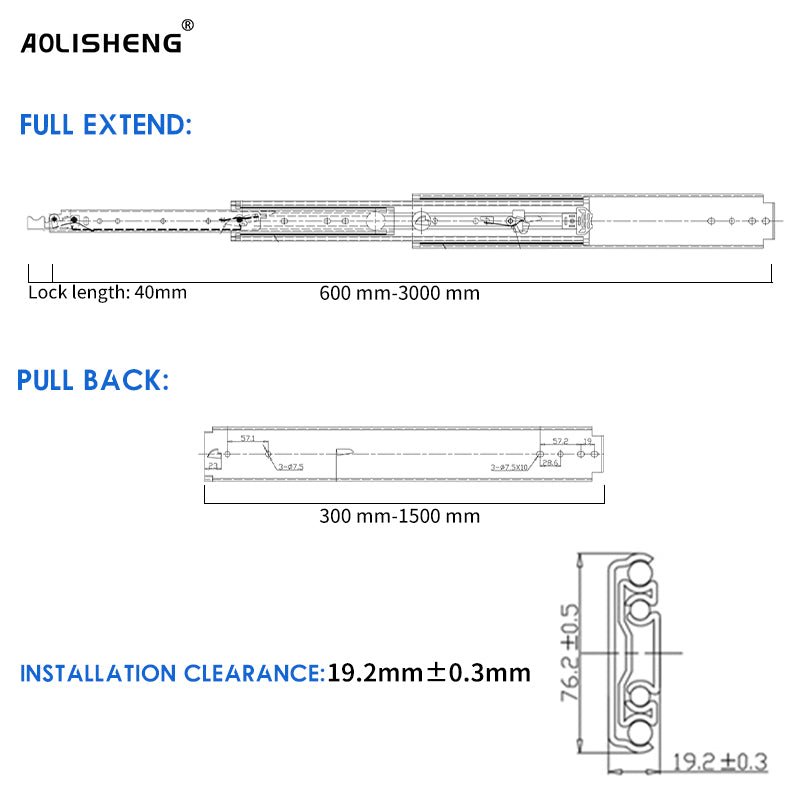

  • 【Installation Requirements】 Size: 12"(304.8mm); Full extension length: 24"(709.6mm); Width: 3 inch( 76.2mm); Installation clearance: 0.76"±0.01"（19.2mm±0.3mm). Same clearance on both sides. Approximate length of yellow lock : 1.18"(30mm). You can choose the size of the rail according to the depth of the drawer. The length of the slide should be ≦ The length of drawer. Please choose the right size before you purchase.
  • 【Application scenarios】 Kitchen drawers for RVs, magic boxes for bed trucks, storage drawers for campers, rear bucket drawers for pickup trucks, outdoor kitchens for RVs, truck compartment drawers, industrial drawers, etc.

Specification

  •  Width: 3 inches

  • Height: 0.7 inches

  •  Material: cold rolled steel

  • Weight: 500LB (As the length of the slide rail increases, the load capacity will decrease relatively.)

  • Packing: carton package（Note：Mounting screws and brackets not included）

  • Remarks: When installing, the unilateral clearance shall not be less than 19.2mm

About Delivery

We provide air, sea shipping (we will choose the appropriate express according to your country, and will send you the goods: shipping time: 7-10 days)

    Each Pair Package

    • 1 x Pair of drawer runners
    • The mounting brackets and screws are not included
    • Tough Quality Assurance
